Final Assembly

Step 4:

This is the last part of the assembly.

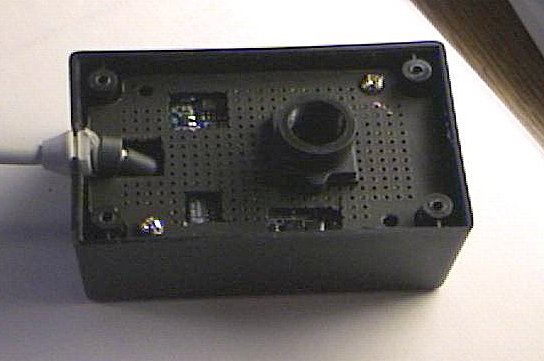

		Insert the camera and mounting plate into the box and use the two screws to secure the camera. The two screws can be use to adjust the x - y movement. This might be needed later on to align the CCD element to the ceneter of the 1.25” eye piece. Slide the USB cable into place.

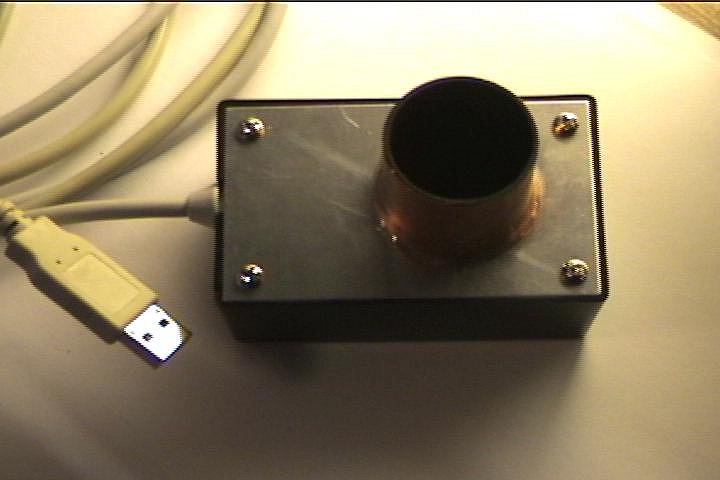

	Install the cover and eye piece and secure with the four screws.


	Well done. You have completed the Astrocam.
