Assembly

Step 3:

Now it is time to put every together.

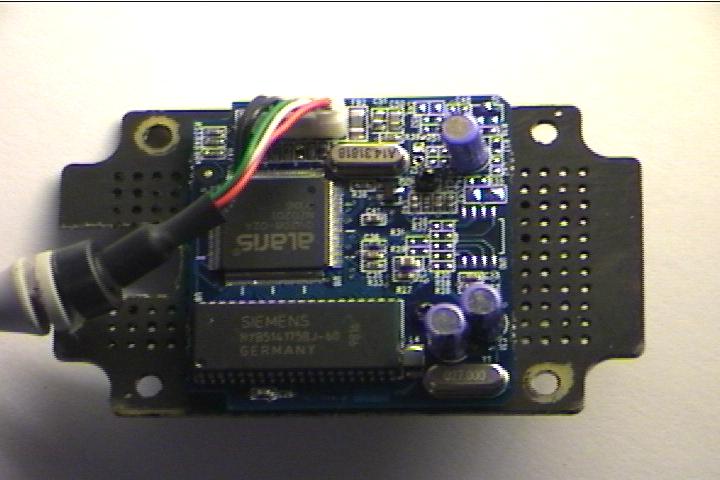

On the back of the circuit board.

Insert the CCD element frame into the 14 mm hole.  Carefully lay the camera board on top of the frame.  Insert the two little screws to help the frame stay in place.

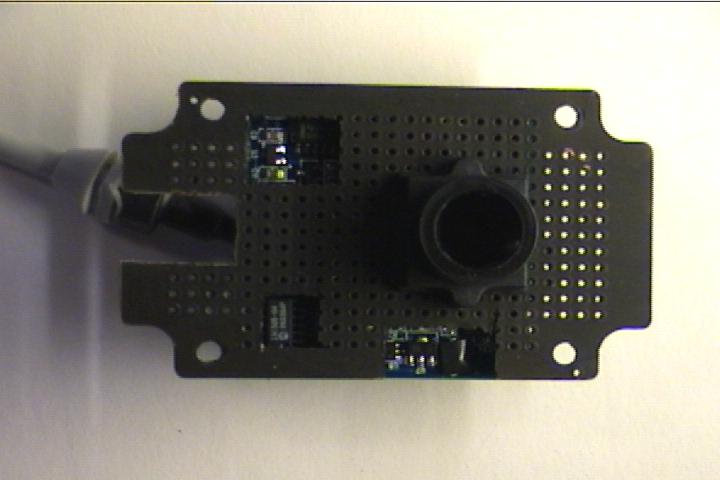

On the front of the circuit board.

Align the lens holder to the 14mm hole and screw in the two screws.  The mount should now be sandwiched between the camera circuit board and the lens holder.

This is not an exact science and the instructions are not detailed.  If you get stuck just think about and I am sure you will come up with something.
